Explosion proof LED Handlamp (rechargeable) incl. Li-Ion battery, ATEX, 20h run time

Explosion-proof hand lamp, ATEX

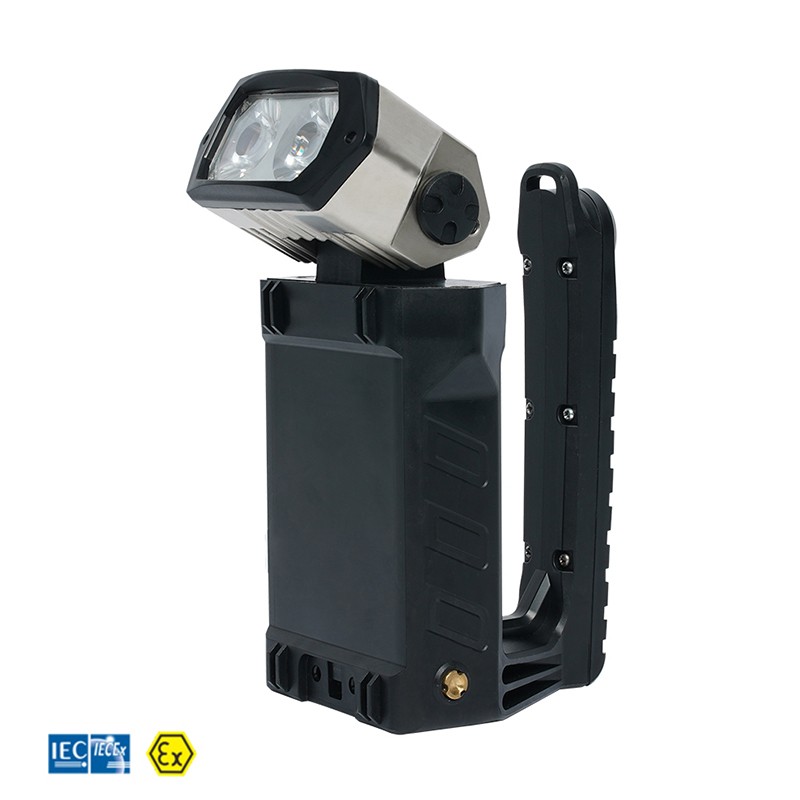

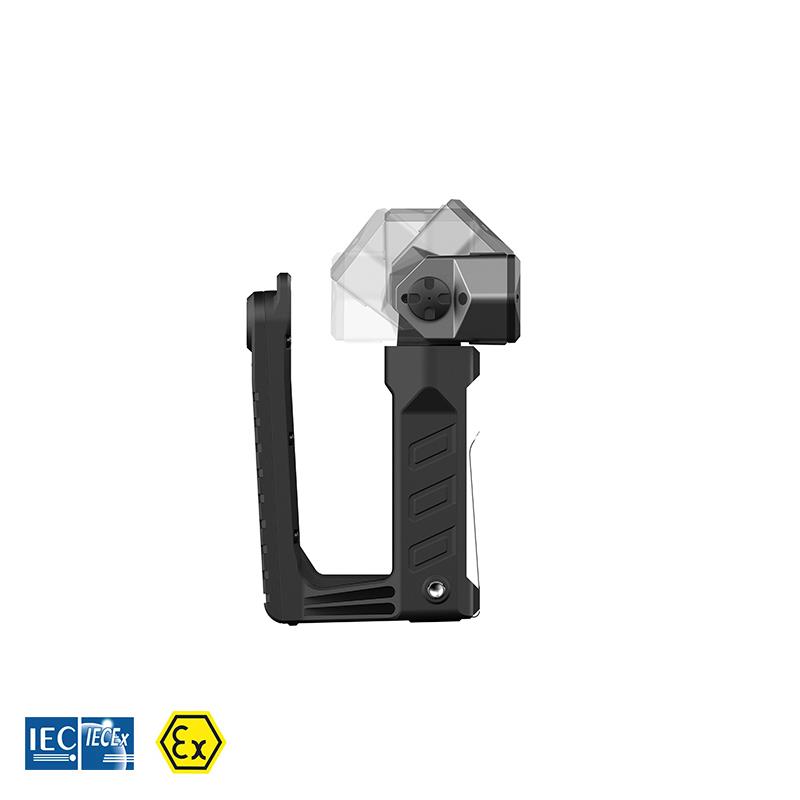

ExMP52R is a rechargeable, intrinsically safe explosion-proof LED hand lamp for Zone 1/2 and Zone 21/22. The housing is made of heavy-duty nylon, which is permanently anti-static, lightweight, easy to transport, corrosion-resistant and oil-resistant. The lamp head can be rotated through 180°, allowing the lamp to light up precise environments. The light intensity can be selected between the operating mode, an extra bright mode and an SOS mode. The end of the lamp is equipped with a position light with a choice of 5 colors.

The high-quality lithium-ion rechargeable battery ensures up to 20 hours of operation, whereby the high luminosity of the Ex lamp is maintained even during the discharge cycle. The hand lamp has a battery status indicator which starts to flash 15 minutes before the battery is fully discharged, thus protecting against sudden downtimes. The battery itself has short-circuit and overheating protection and prevents overcharging and deep discharging.

Product information:

Ingress protection: IP66/67
Certifications: IECEx, ATEX
Usage: II Zone1/2, III Zone 21/22
Battery Type: Li-Ion (IEC61233, IEC61960)
Battery capacity: 3,6V / 10050 mAh
Charging time: <14h
Charging cycles: 500
CCT: 6500K
Luminous flux: up to 320lm (strong mode), up to 180lm (work mode), up to 180lm (SOS Mode)
Run time: up to 15h (strong mode), up to 20h (work mode)
Beam distance: up to 117m (strong mode), up to 85m (work mode)
Lifespan (without Batterie): 50.000h

Working ambient temp.: between -40°C and+55°C
Weight: 589g

Device groups:

Group I : Equipment for use in mining/surface/underground operations
Group II : Equipment for use in potentially explosive gas atmospheres
Group III : Equipment for use in potentially explosive dust atmospheres: I, IIA, IIB, IIC, IIIA, IIIB
