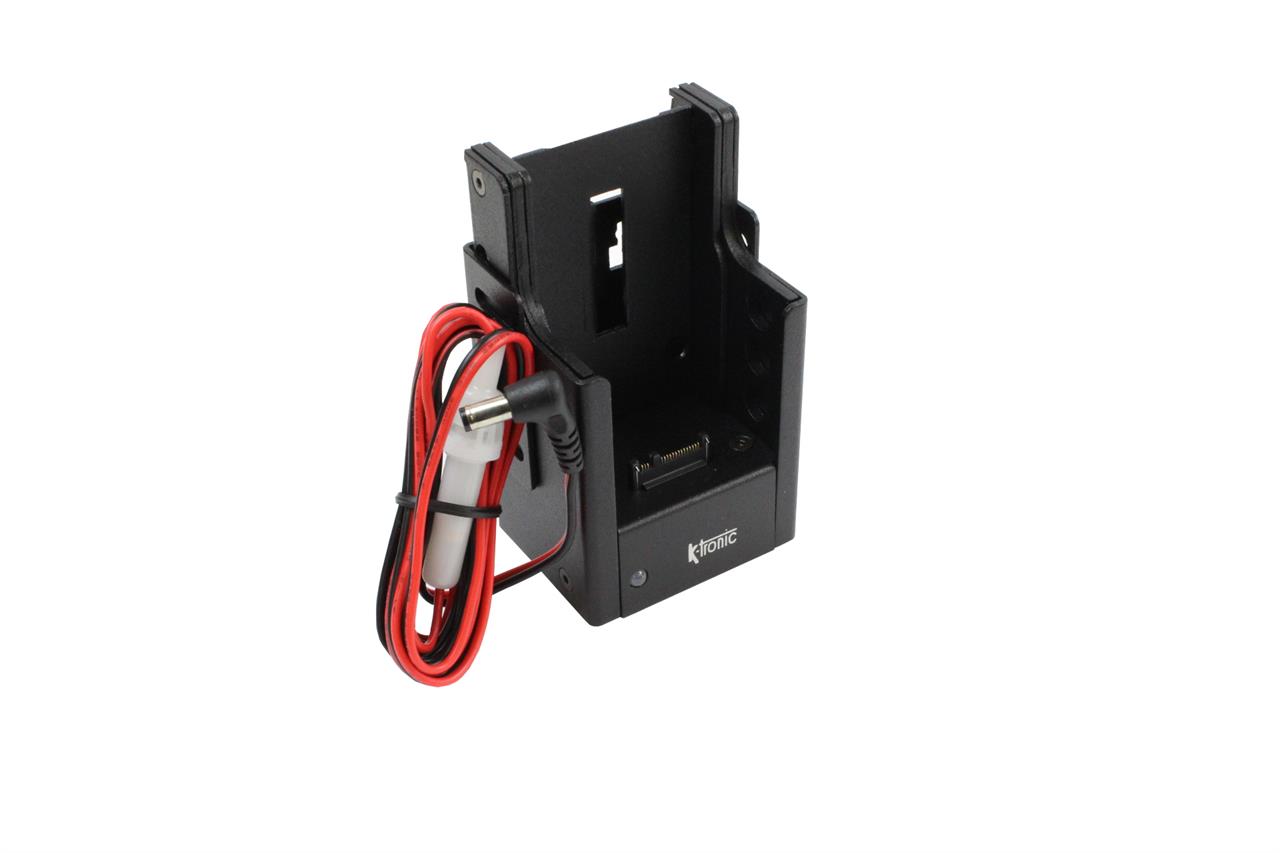

Car charging cradle for Motorola device series MTP850, MTP850FuG, MTP850S (passive)

Car charger for Motorola MTP850, MTP850FuG, MTP850S

The CH850 car charging cradle from K-Tronic enables the secure storage and reliable charging of Motorola MTP850, MTP850FuG and MTP850S two-way radios directly in the vehicle. It has been developed for professional use and is particularly suitable for the police, fire service, emergency medical services and other public safety organisations (BOS).

Thanks to the robust, plastic-coated metal housing and the side spring clips, the radio sits securely in the mount, even without a belt clip. The optimal fit ensures a firm hold and comfortable handling inside the emergency vehicle.

The intelligent charging function automatically activates the charging voltage as soon as the radio is inserted. The charging process is controlled directly by the radio. A three-colour LED indicator shows the current charge status and signals when charging is complete. The radio can remain in the mount permanently and is reliably supplied with operating voltage whilst there.

With a supply voltage of 8 to 32 V, the vehicle charging mount is suitable for a variety of vehicle electrical systems. The charging current of approx. 900 mA enables rapid charging of compatible Li-ion batteries. The reverse-polarity-protected design and high-quality contacts ensure reliable operation.

Product benefits at a glance

• Compatible with Motorola MTP850, MTP850FuG and MTP850S two-way radios
• Secure hold thanks to side spring clips, even without a belt clip
• Automatic charging activation when the two-way radio is inserted
• Three-colour LED indicator for monitoring the charging status
• Approx. 900 mA charging current for fast charging
• 8 to 32 V supply voltage for various vehicle electrical systems
• Robust metal housing with durable polyamide coating
• Reverse-polarity-protected design for reliable operation
• Suitable for Li-ion batteries
• E1, CE and RoHS compliant, lead-free design

Technical specifications:

Manufacturer: K-Tronic

Compatible with: Motorola MTP850, MTP850FuG, MTP850S

Supply voltage: 8V to 32V

Fast battery charging: approx. 900mA

Battery type: Li-ion

Housing dimensions (W/H/D): 61 x 105 x 48 mm

Charge status indicator: Three-colour LED

Markings: E1, CE, RoHS

Included in the scope of delivery: Installation instructions, mounting bracket, thumbwheel screws, DC cable with fuse, cable tie and M3 countersunk screw.

Which Motorola two-way radios is the CH850 suitable for?

The CH850 car charging mount is compatible with the Motorola MTP850, MTP850FuG and MTP850S two-way radios.

Can the radio be left in the car charging mount permanently?

Yes, the radio can be left in the mount permanently. The charging process is controlled by the radio, whilst the mount provides the required operating voltage.

Is the CH850 car charging mount suitable for 12 V and 24 V vehicles?

Yes. The car charging mount supports a supply voltage of 8 to 32 V and is therefore designed for corresponding 12 V and 24 V vehicle electrical systems.

How is the charge status displayed?

A three-colour LED indicator shows the current charge status and signals when the charging process is complete.
