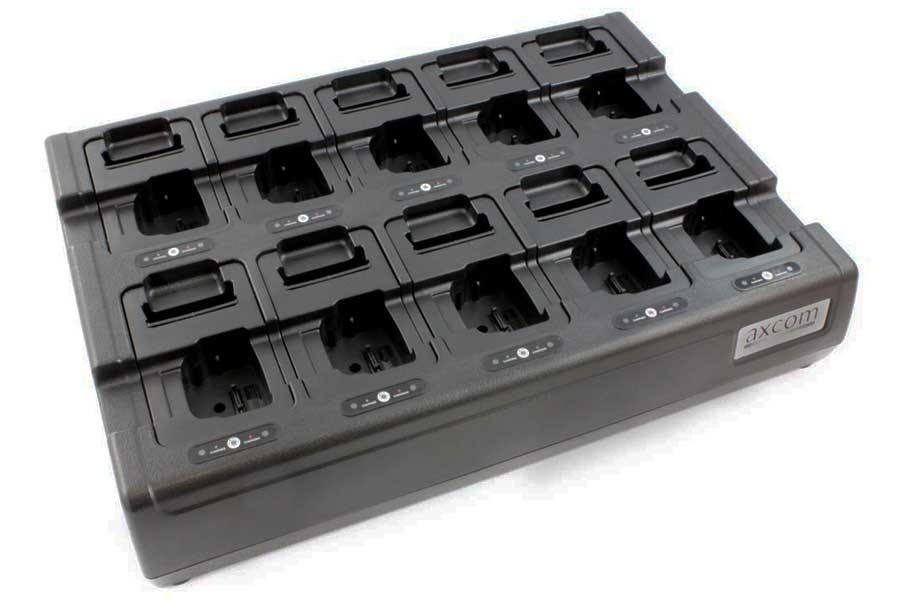

10+10-station charger for Motorola DP2400, DP2600, DP3600, DP4400, DP4600, R5

The SM-LG1010-DP3600 allows you to charge 10 radios and 10 spare batteries in parallel, i.e. a total of 20 batteries at the same time. Thanks to individually interchangeable charging bays, different kinds of radios + spare batteries can also be charged in parallel. Alternative charging bays are available separately from Axcom.

This Axcom 10+10 station charger is equipped with charging adapters for the Motorola models DP2400, DP2600, DP3600, DP4400, DP4600, R5.

An LED display provides information about the battery charge status.

Technical data:

• Charging currents: 900 mA quick charge battery, 400 mA preparation charge, 1100 mA max. charging current
• Charging voltages: Li-Ion: 3.6V-11.1V; NiCd/NiMH: 3.6V-9.6V
• Charging method for Li-Ion: constant current (fast charging), followed by constant voltage
• Charging method for NiCd/NiMH: constant current (fast charge and trickle charge) (cut-off - delta U)
• Safety cut-off: After 4 hours, fast charging is switched off, after 10 hours trickle charging is terminated.
• Power supply: External power supply 110-240 V AC - 50/60 Hz
• Input voltage: 12-24V

Interchangeable adapter shells make it compatible with radios and batteries from:

• Icom BP209/210N, BP232, BP227
• Kenwood KNB31, KNB32N, KNB33L, KNB25, KNB26N, KNB35L, KNB29, KNB30
• Motorola CP040, CP140, DP, MOTOTRBO, GP340, XTS2500, MTH800, MTP850, MTP850S, MTP850FuG, MTP850EX, MTP810EX
• Sepura SRP2/3800, STP8000, STP9000
• Nokia EADS THR-9, EADS THR880, THR880i

Scope of delivery:

The scope of delivery includes an SM-LG1010 charger. 10x pre-assembled charging cradles for Mototola DP2400, DP2600, DP3600, DP4400, DP4600, R5 radios. And an external power supply unit for connecting to the socket.

SM-LG66 Charger
6x charging cradles (already pre-assembled)
External power supply unit
