Speaker microphone for Motorola MTP850FUG, MTP6650, DP3400-4800 (Nexus Savox, IP56)

The XSMP5000M10-SON-Y Axcom speaker microphone is compatible with the Motorola radios series MTP850FUG, MTP6650, DP3400, DP3401, DP3600, DP3601, DP4400, DP4401, DP4600, DP4601, DP4800, DP4801.

Compared to dynamic microphones, speaker microphones impress with their high sound quality. Built-in condenser microphones reduce background noise and powerful built-in speakers ensure clear communication.

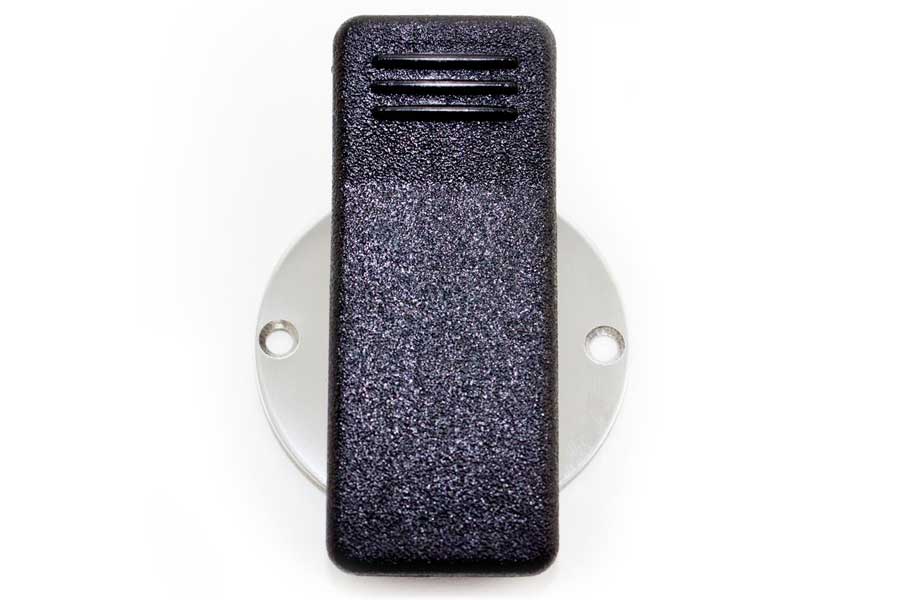

The Axcom handheld control units consist of a robust, partially rubberized housing and are easy to operate thanks to their intuitive design. A large transmit button on the top makes it easy to operate even when wearing gloves and its eye-catching yellow color makes it easy to see even in the dark or in poor visibility conditions. A 360° rotatable fastening clip with 8 notches allows you to attach the control unit perfectly. A high-quality PU cable and anti-kink sleeves ensure long-term use. You also have the option of connecting accessories with a 7.1 mm Nexus plug with Savox pin assignment.

The speaker microphone is suitable for use in harsh and wet environments (in accordance with protection class IP56).

Your advantages at a glance:

• High sound quality thanks to condenser microphone
• Easy to operate, even with gloves or in the dark
• High-quality components for a long service life
• Particularly good price-performance ratio



Technical information:

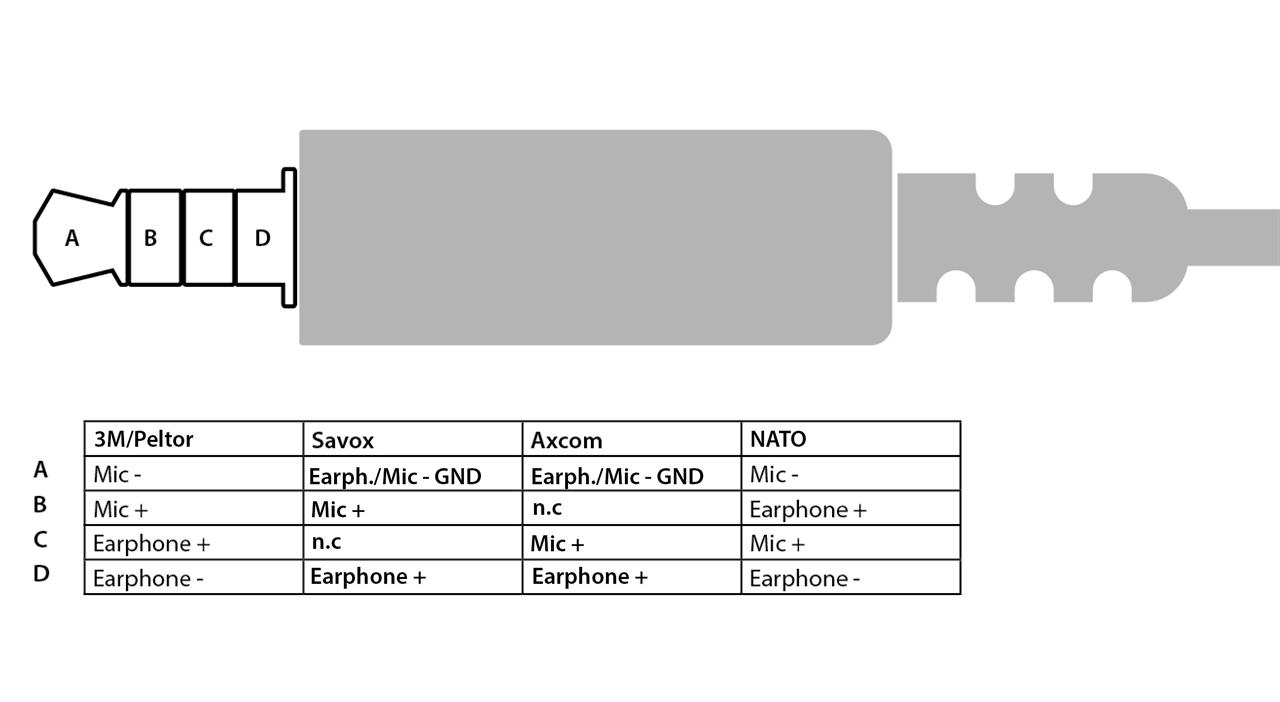

Nexus Savox pin assignment

Dimensions: 101.0 x 66.7mm
Mounting clip dimensions: 54.2 x 22.2mm
Microphone dimensions: Ø6.0 x 5.0mm
Weight: 200g
Cable length: 500mm
Cable cross-section: Ø5.5mm
Cable material: PU

Electronic data:

Sensitivity: -45dB +- 3dB

Loudspeaker dimensions: Ø40mm
Impedance: 8Ohm +- 15%
Maximum power: 1.0W
